Integrated Smart Toilets for Wholesale and Project Supply
Wholesale buyers and project specifiers evaluating smart toilet suppliers typically look for three things: consistent product quality, configurable specifications for different markets, and a manufacturer with verifiable production capacity.
Gaufen Bathrooms manufactures integrated smart toilets — pre-assembled units that combine the ceramic body, flushing mechanism, electronic bidet, and heated seat into a single product delivered from one supplier. This article covers the product configuration, available features, manufacturing process, and options for OEM/ODM partnerships.
Differentiated Features
The following functions distinguish these products from basic entry-level smart toilets:
- Built-in flushing tank with booster pump. The toilet stores water in an internal tank and generates flushing pressure via a pump. Designed for buildings where incoming water pressure is low or inconsistent — high-rise apartments, older commercial properties, and regions with unstable municipal supply.
- Foam shield system. A foam layer is dispensed over the water surface to contain odors and reduce waste contact with the bowl surface. The system uses a replaceable liquid cartridge.
- Instantaneous water heating. Water for washing is heated on demand by a flow heater. No stored hot water tank means no temperature drop during extended use and no risk of bacterial growth in a water reservoir.
- UV sterilization cycle. An ultraviolet light disinfects the spray nozzle when the lid is closed. Cycle frequency can be set via remote control.
Standard Functions
| Function | Included |
|---|---|
| Heated seat (adjustable temperature) | Yes |
| Warm air dryer (adjustable temperature) | Yes |
| Retractable self-cleaning nozzle | Yes |
| Soft-close seat and cover | Yes |
| Remote control (IR/RF) | Yes |
| Night light | Yes |
| Adjustable water pressure and temperature | Yes |
| Adjustable nozzle position | Yes |

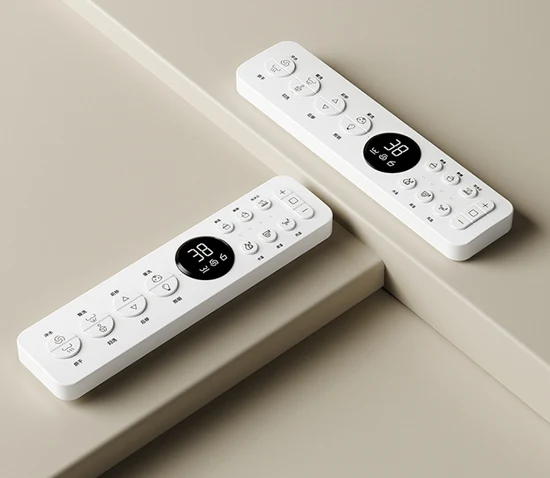

Smart toilet remote control
Built-In Pump System Explained
Tankless smart toilets require a minimum incoming water pressure — typically 0.15 to 0.2 MPa (approximately 1.5 to 2.0 kgf/cm²) — to flush effectively. When inlet pressure drops below this range, flush performance decreases.
The integrated tank and pump system operates differently. The tank fills when water is available at any pressure. During a flush cycle, the pump pressurizes the stored water and delivers it to the bowl at a controlled rate. The flush completes using the tank volume, and the tank refills afterward.
Applicable scenarios:
- High-rise residential buildings where upper-floor pressure drops during peak hours
- Buildings with aged plumbing that restricts flow
- Regions where municipal water pressure varies by season
Applications
- Hotel and hospitality. Guest bathrooms in hotels, resort villas, and serviced apartments where bidet and heated seat functions are listed as room amenities.
- Residential developments. Apartment buildings and condominium projects where developers standardize on a single fixture model across multiple units.
- Commercial facilities. Office building washrooms and medical facility patient bathrooms where touchless operation (auto lid, foot-sensor flush) reduces contact with shared surfaces.
- Institutional projects. Student housing, staff dormitories, and military quarters where self-cleaning and foam shield functions reduce the frequency of manual cleaning required by maintenance staff.
Installation Requirements
The toilet connects to standard sanitary fixture supplies:
- Power: 110-120V 60Hz or 220-240V 50Hz (factory-configured for target market)
- Water: 1/2-inch angle valve connection, cold water only
- Drain: Floor outlet or wall outlet; S-trap or P-trap configurable
Rough-in Options
| Dimension | Common Market |
|---|---|
| 305mm (12-inch) | North America |
| 350mm (14-inch) | Parts of Europe and Asia |
| 400mm (16-inch) | Australia, other regions |

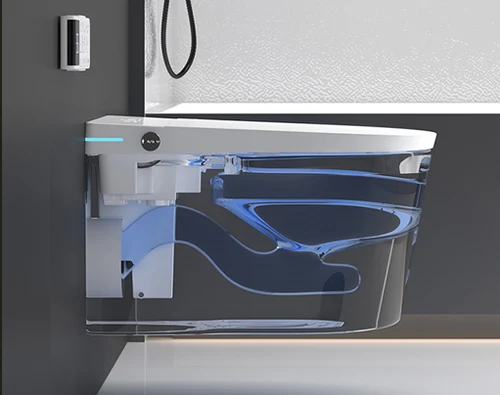

P-trap configuration

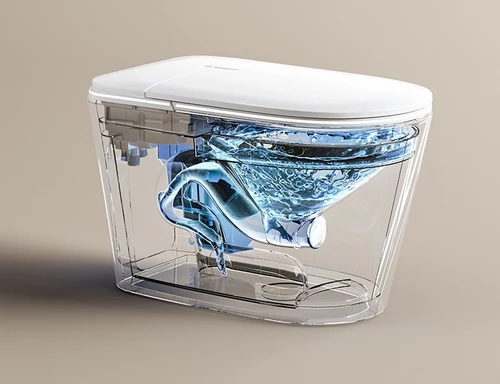

S-trap configuration
Sealing is done with a wax ring or sanitary silicone sealant per local plumbing code. Cement mortar is not used.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product type | All-in-one integrated smart toilet |
| Body material | Vitreous china |
| Seat material | UF or ABS |
| Flushing type | Siphon jet with internal pressurized tank |
| Water supply | Designed for low-pressure environments. Contact sales for model-specific data. |
| Heating method | Instantaneous flow heater |
| Control interface | Side panel + handheld remote |
| Drainage | Floor outlet / Wall outlet; S-trap / P-trap configurable |
| Rough-in | 305mm / 350mm / 400mm |
Contact the sales team for current certification documentation applicable to your target market.
Manufacturing Process
As a ceramic sanitary ware manufacturer, production follows these stages:
- Mold engineering. Tooling is developed in-house based on product design specifications.
- Slip casting. Clay slurry is prepared from blended raw materials (kaolin, feldspar, quartz) and cast into molds.
- Drying and finishing. Cast pieces are dried to target moisture content. Edges, surfaces, and mounting holes are finished by hand.
- Glaze application. A dual-layer glaze is applied — automated spray for coverage, followed by manual touch-up.
- Kiln firing. Ceramic bodies are fired in computer-controlled tunnel kilns at approximately 1280°C. Total cycle time exceeds 17 hours.
- Post-fire inspection. Each piece is visually inspected. Samples undergo water absorption, chemical resistance, and dimensional testing.
- Electronic assembly. Smart seats are bench-tested before pairing with ceramic bodies.
- Final QC. Each unit is water-tested for flush performance and leak integrity.

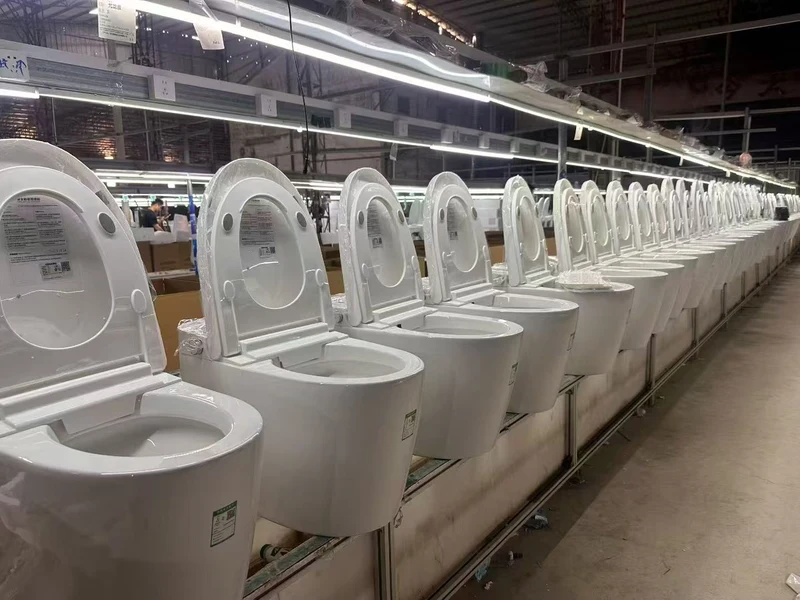

Smart toilet production line and kiln firing area
Quality Control
- 100% water testing on every unit before packaging
- Visual inspection at multiple production stages
- Random sample testing for mechanical and electrical function
- Water absorption testing on production samples

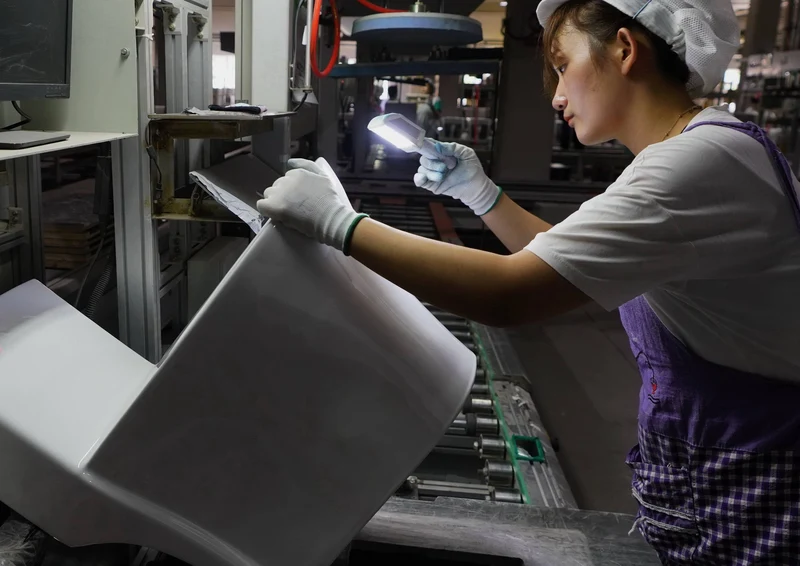

Quality inspection on ceramic sanitary ware
Packaging Standards
- Standard packaging: 5-layer corrugated carton with molded foam inserts
- Container loading: Units arranged to maximize utilization while preventing compression damage
- Custom packaging (OEM): Private-label cartons with customer branding and SKU barcoding

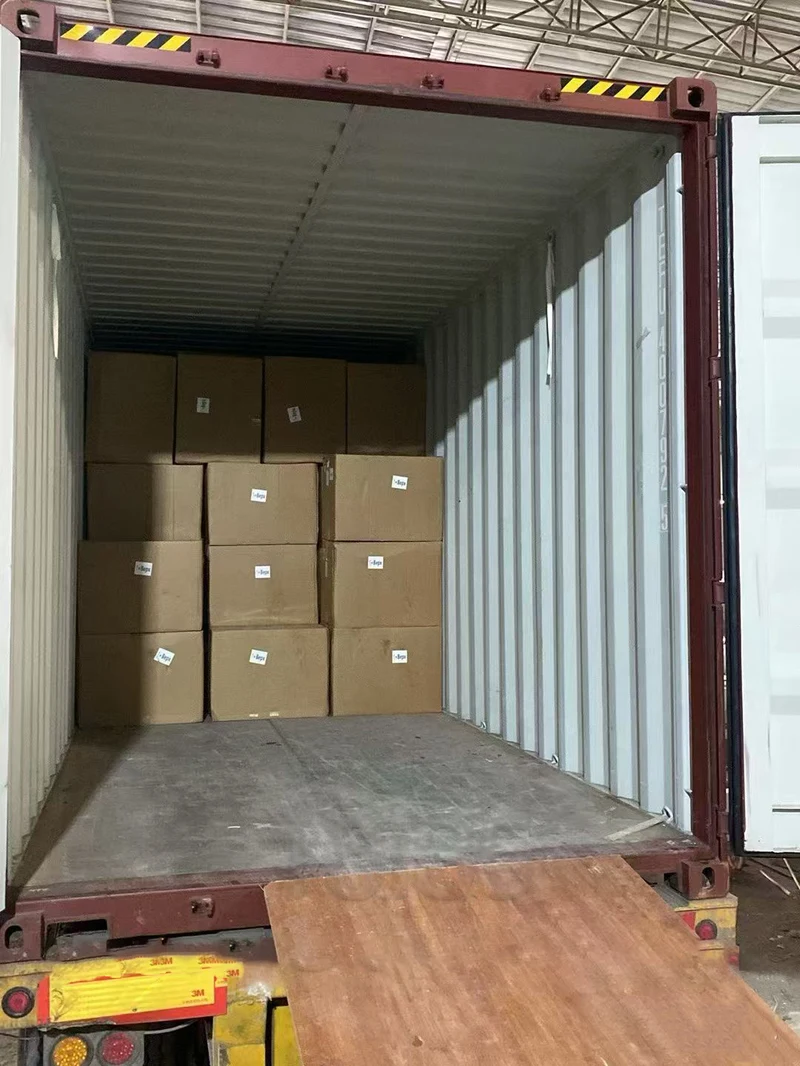

Export container loading at Gaufen warehouse
Export Experience
Gaufen Bathrooms supplies products to buyers in Central Asia, South America, Southeast Asia, and the Middle East.
Samples can be arranged for quality evaluation prior to bulk orders.

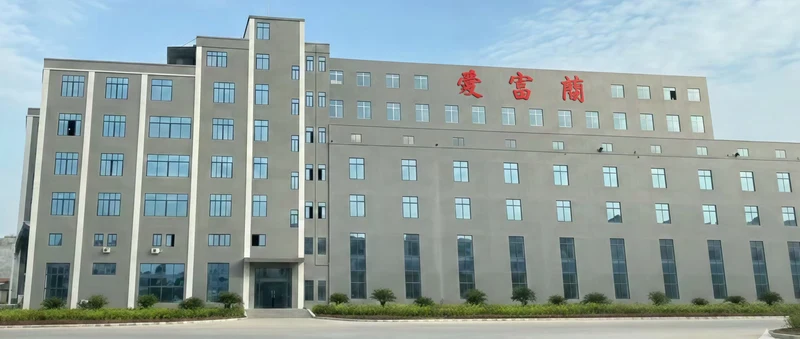

Gaufen factory exterior, Chaozhou, China
OEM & ODM Services
Customization options for volume partners:
- Branding. Logo on ceramic body, seat, remote control, and packaging
- Voltage and plug. Configured per target market
- Voice control. Custom wake word on offline voice module (MOQ applies)
- Packaging. Private-label cartons with barcodes and SKU labeling
- Documentation. Manuals and spec sheets in target language
Sample orders accepted for quality evaluation. MOQ depends on model and customization scope.
Request a Quote
For wholesale pricing, OEM inquiries, certification documentation, or sample orders, contact the sales team through the Gaufen website.
